YH-TP791 Oil particle counter
Series YH-TP791-YELOCO
Application:
This instrument is made and designed as per the standard of GB/T18854-2002, ISO11171-1999, DL/T432-2007, GJB 420B, NAS1638, I SO4406 and adopts light blockage method principle. It is suitable to determine particle pollution degree of hydraulic oil, lubricating oil, fuel oil, insulating oil, turbine oil. It widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, ports, metallurgy, machinery and automobile manufacturing fields.
Features
- It adopts light blockage method principle.
- High precision laser sensor, wide range measurement, stable performance, low noise and high resolution.
- It adopts precision injection pump sampling method, can set sample volume freely, sampling speed is stable and high precision.
- Adopted the combination of positive and negative sample system, can achieve sample degassing, can suit to different viscosity test.
- Built-in air purification system, that ensured test will not be polluted.
- Built-in multiple calibration curve, can be compatible with home and abroad common standard for calibration .
- Built-in GJB-420B, NAS1638, ISO4406 ,TOCT17216-71 4 common standard. It can support custom standard to test and can set the standard according to customer’s requirement.
- It can use standard sampling bottle or sampling cup and other container, that can meet the requirement of different fields.
- Color touch screen operation, built-in printer, simple structure, easy for operation.
- Fully automatic operation, Chinese input, with data storage and printing function.
- Built-in data analysis system, can auto judge sample level according to standard.
- With RS232 interface, can be connected to computer and laboratory platform for data processing.
- Can offer charged test report .

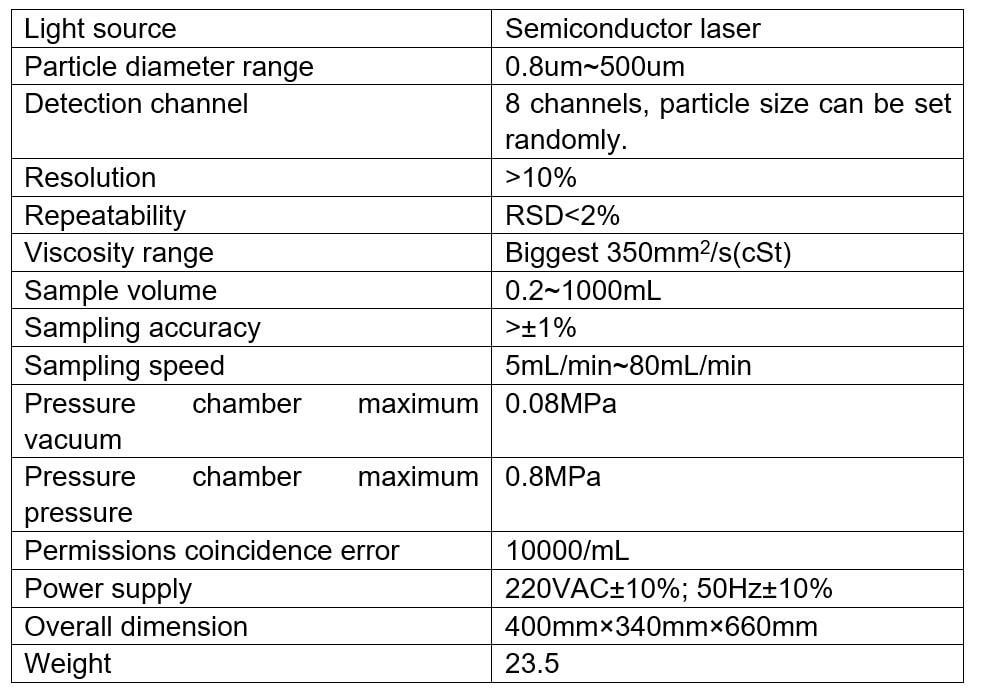

Specifications:

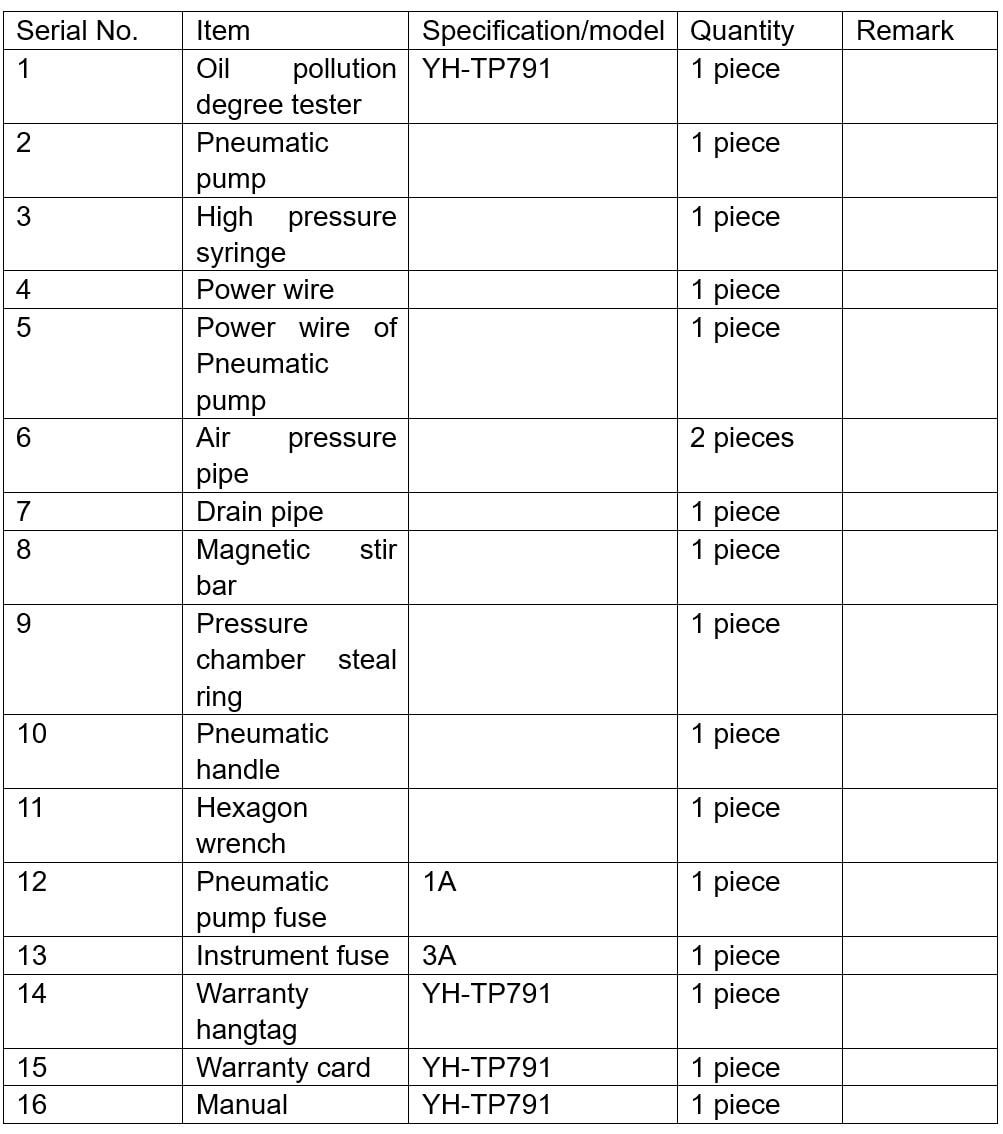

Standard packages
