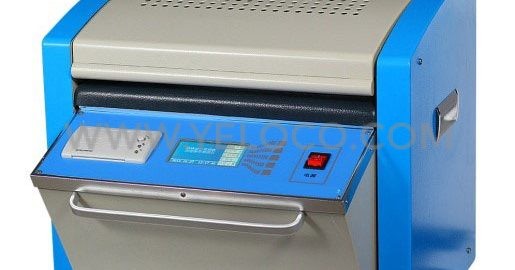

YH-TP673 Automatic oil dielectric loss &Volume Resistivity Tester
Series YH-TP673-YELOCO

Application:

This instrument is made and designed as per GB/T5654 standard. It is suitable to determine dielectric loss factor and volume resistivity of liquid insulating materials at the experimental temperature, which is in transformers, cables, electrical equipment. It is widely used in petroleum, chemical industry, commodity inspection ,electricity and scientific research institutions.

Features

  • using medium frequency for induction heating, it only need 15min, for heating up from room temperature to controlled temperature(90℃) and auto measurement.
  • Can test oil dielectric loss and volume resistivity simultaneously or choose anyone of them.
  • It adopts large screen LCD displayer, the instrument can work automatically only need input order according to Chinese menu prompt.
  • With communication function, can equip computer for real time supervising, and observe the change of oil dielectric according to oil temperature.
  • Auto display measuring results ,print data and store.
  • With overpressure, over current , short circuit protection, high pressure indicator and alarm function.

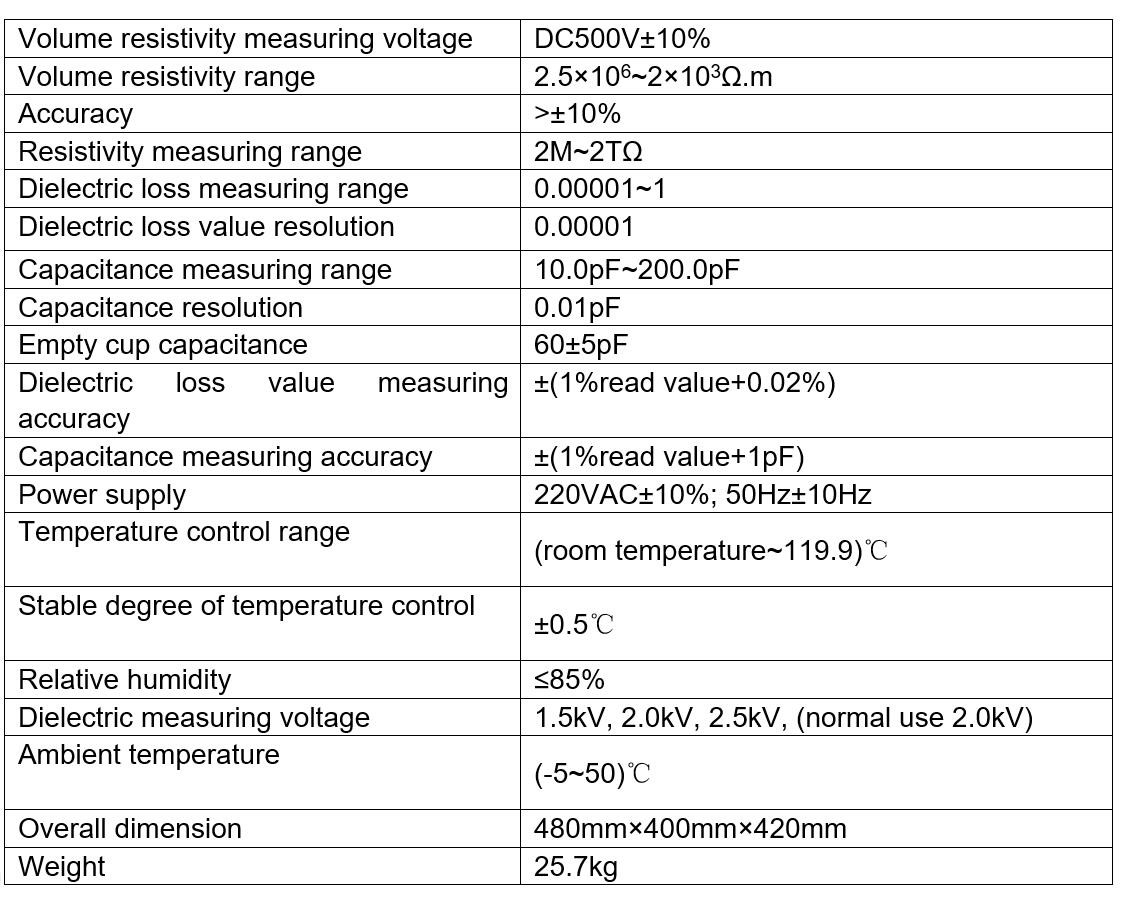

Specifications:

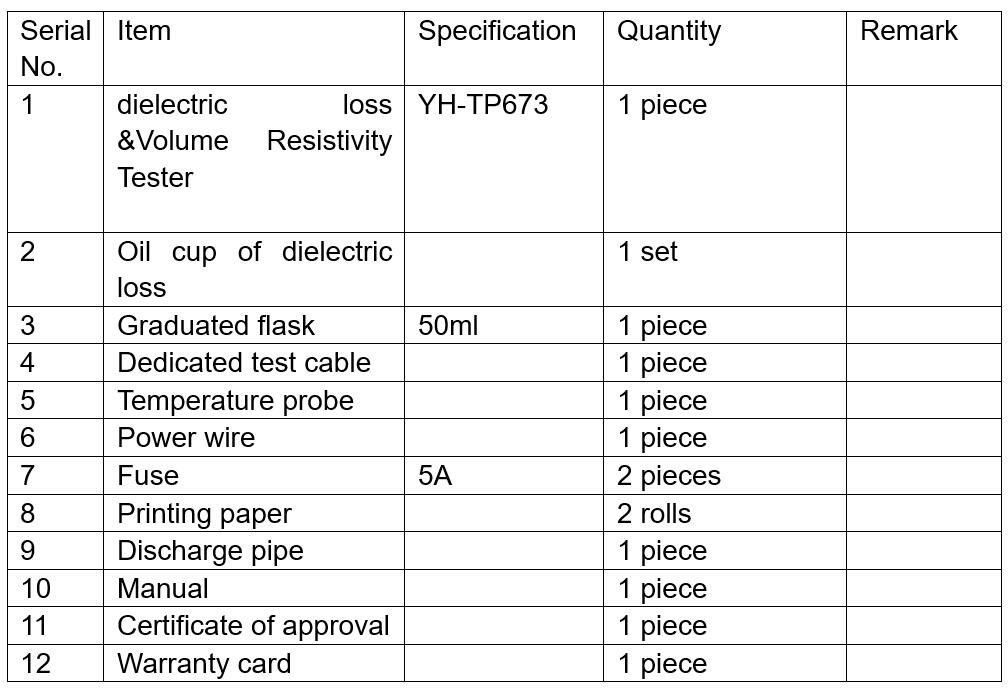

Standard packages
