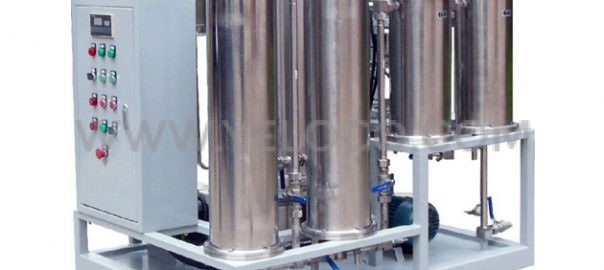

Phosphate Fire-Resistant oil purifier
Series YH-PFR-YELOCO

Application:

The YH-PFR series Phosphate Fire-Resistant oil purifier is designed for purifying the operating requirements of the fire-resistant oil. It adopts compatible materials and many cleaning oil technologies, such as vacuum dehydration, new particle filter to elimination impurities, and a special absorbency to remove acid components from the oil.

Features:

  1. The purifier is a next-generation vacuum oil purifier destined for the phosphate ester fire-resistant oil system. It utilizes dewatering and degassing technologies such as anti-precipitation, aggregation, separation transformation, resolution, vacuum entrapment and flash evaporation, which not only speedily removes the free water in oil, but also intensively removes the dissolved water and gas in oil. It’s capable of deeply removing remove 100% free water and 99% dissolved water gas from the oil.
  2. The stage-to-stage dandified filter element, made of new composite materials, removes the large amount of impurities in oil, resulting in a precision filtration.
  3. The application of new absorptive materials can effectively absorb the jelly substance in oil and eliminate the acid content in oil, as well as inhibiting the production of new acid in the system.
  4. The purifier body is made of acid and dissolving resistant stainless steel. The filter element and seal are made of anti-fire-resistant oil insoluble material, giving it the benefit of an attractive appearance, easy weight, simple operation, low noise and a long life time.
  5. The system is equipped with the auto infrared oil level control system, auto pressure protect system, ensuring the machine is highly efficient and safely operable.
  6. No workers are required for its operation aside from the equipment running status indicator, as the system works online.
