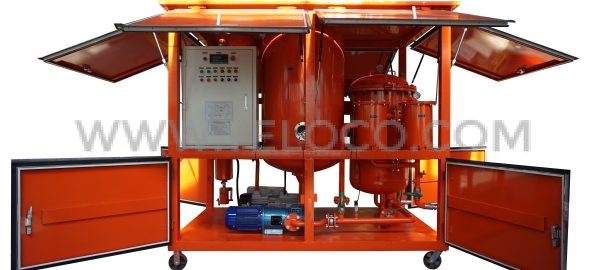

Enclosed double-stage vacuum transformer oil regeneration plant within canopy


series YH-ZYD-R-E–YELOCO

Description

YELOCO Enclosed double-stage vacuum transformer oil regeneration machine is used for the treatment of new and old oil. It is particularly used for 110KV power distribution system and national grid oil treatment, saving time for transformer installation and maintenance.

Application:

  1. Can degas, dehydrate, and filter impurities of transformer oil, mutual inductor oil, switch oil, dielectric oil, and so on.
  2. It adopts the double-stage vacuum system, which can improve the machine’s working vacuum value. It can remove the water, gas, and impurities in transformer oil efficiently, increasing and maintaining the oil's dielectric strength, making sure the electric device runs safely.
  3. It is completely enclosed. It is waterproof and dustproof and can work in any place in any weather condition.
  4. It can vacuum fill oil to the transformer, vacuum dry the transformer, and online operation transformer.
  5. It is designed for processing oils in workshops, in storage tanks, or directly in transformers (energized or de-energized transformers).

Advantages:

  1. Completely enclosed structure – the oil purifier machine is waterproof and dustproof, it can work in any place in any weather condition.
  2. Multi-stage precision filtration system; mesh filtration combined with molecular adsorption technologies can purify the impurity size to 1 micron.
  3. Special precision oil pump, low noise, and long use of life.
  4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
  5. Double-infrared liquid level sensor; pressure protective system to ensure the machine operates easily and safely.
  6. Adopts an interlocked protective system, which connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, the machine will power off automatically. Operation is very safe.

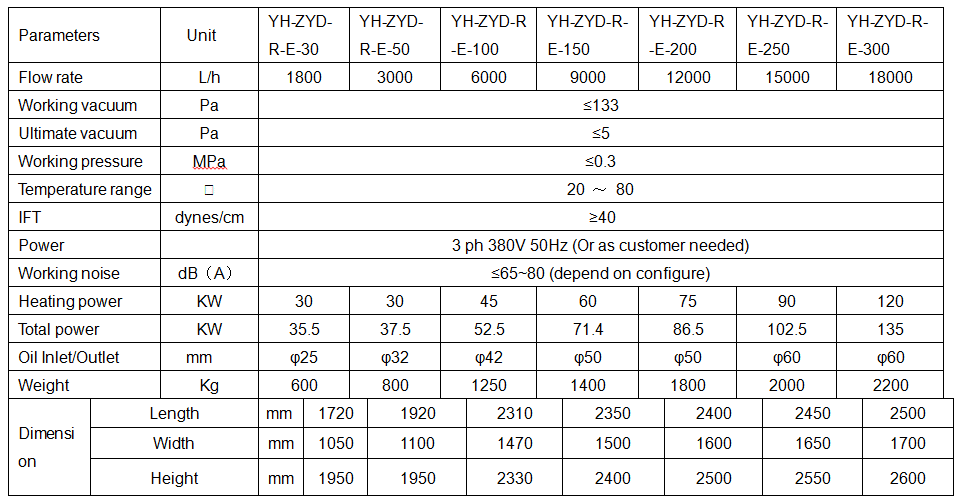

Technical Data

t43

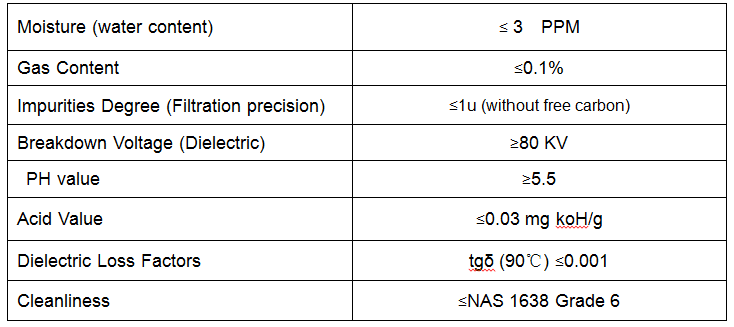

Oil Data After Treatment

t44
