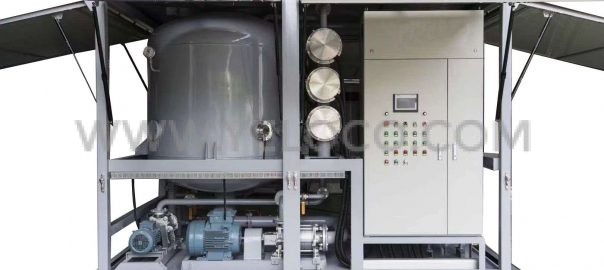

Automatic double-stage vacuum tansformer oil filtration equipment with PLC
series YH-ZYD-A–YELOCO
Description:
YELOCO Fully automatic transformer oil filtration equipment adopts the PLC programmer to operate automatically, degassing, dehydrating, and filtering impurities of transformer oil effectively. It increases and maintains the oil's dielectric strength.
How to increase the dielectric strength of transformer oil?
Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. There are also some waste impurities, gas contents in the transformer oil which destroy the oil’s quality. In order to address this problem, we have designed double-stage vacuum transformer oil filtration equipment. This machine adopts the double-stage vacuum system, which can highly improve the machine’s working vacuum value as it removes the water, gas, and impurities from transformer oil efficiently. The machine adopts duplex 3D stereo-evaporation technology, which has an evaporation area that is three times more than that of normal evaporation technology. This innovation can dehydrate and degas effectively and efficiently. The machine uses England’s APUREDA precision filter, which removes various impurities and particles thoroughly. Hence, the double-stage vacuum transformer oil filtration equipment can remove the water, gas, and impurities in insulating oil efficiently, increasing and maintaining the oil's dielectric strength.
Advantages:
- Uses touch screen operation to achieve automatic control. It adopts the PLC programmer to achieve central data handling and issues instructions to components for implementation, so the machine can operate automatically.
- Can be set to start and stop work automatically.
- Digital adjustment of operation parameters; all parameters can be adjusted.
- Parameters protected safely.
- Automatic heating.
- Automatic balancing measurement.

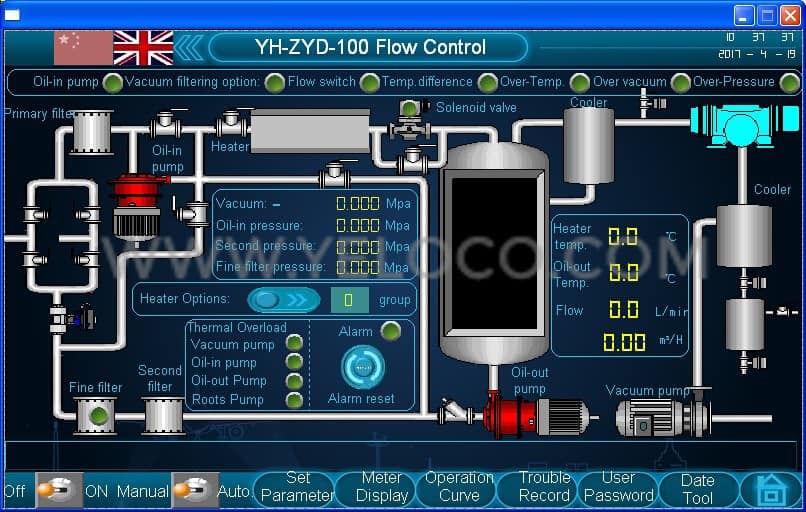

- System animation simulation running; understanding the components’ operation clearly.
- Fault records; recording equipment of various faults.
- Operating curve analysis display.
- Humanized operational interface.

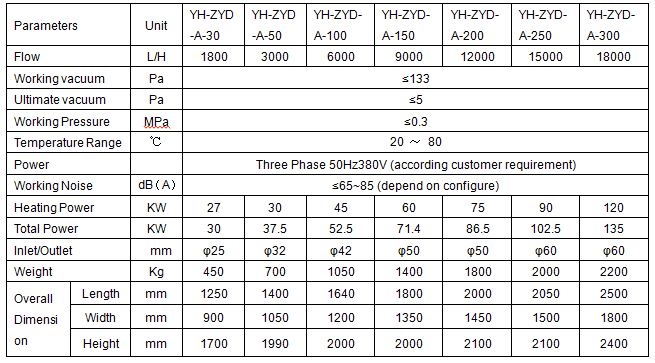

Technical Data
Oil Data After Purification
