Application:

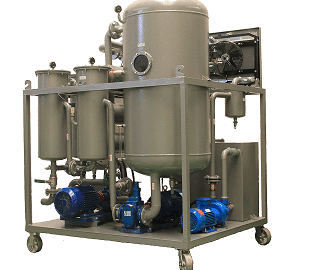

Oil water separator machine series YH-TYD is applied to treatment high water content turbine oil, hydraulic oil, refrigerant oil, lubricating oil, and so on. The oil water separator series YH-TYD can quickly degas, dewater, and remove the impurity and the volatile matter. It enhances the oil quality, restores the lubricating oil viscosity, augments the flash point, and improves the operational performance. This machine is suited for many industries, such as mine, metallurgy, electric power, transportation, manufacturing, and so on. The Series YH-TYD Oil water separator machine adopts a plate heat exchanger and water-ring vacuum pump, which is used for treatment of the oil, including high percent of water. The plate heat exchanger improves the cooling system and produces a cooling result better than the common cooling system. The water-ring vacuum pump does not affect the vacuum degree because of the high amount of water; this machine removes water from oil quickly and effectively.

Features:

1. The machine adopts a deep and precise FH rectangular filtering system and a highly polymeric adsorbing material filter; therefore, the machine has a strong ability to remove the impurity and can filter the solid particles completely.
2. We adopt the high-quality filter materials, which have a good function in anti-corrosive, thermostatic, mechanical strength. In particular, the precision of eliminating impurity is high and the service life is long. It also has a large volume for storing the impurities.
3. Due to the coalescing separation filter and vacuum dewater system, dewatering can be done effectively and thoroughly.
4. Unique degas and dewater technology: The stereo-evaporation technology can separate the water and gas from the oil quickly using the multi-level water-oil separation technology. It can remove the free and dissolved water from the oil thoroughly.
5. It has the backflush system, which can clear impurities automatically.
6. Strong capability of breaking emulsification.
7. Advanced dielectric condensation device.
8. This machine installs the new pressure protector, which can control the temperature automatically. It can also drain water on line by the water-separator device, therefore it is easy to control this machine.
9. Adopts double-infrared fluid level auto-control systems, which can control oil inlet and oil outlet automatically.
10. Adopts a trinity of interlocked preventive devices.

Technical Data

Oil Data After Treatment
