Application:

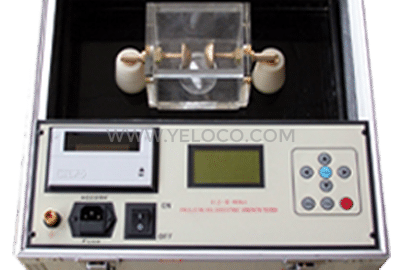

Series YH-IIJ-II YELOCO Insulating oil breakdown voltage tester is produced as per the IEC156 standard, which includes an industrial single-plate integrated circuit, new-style I/O jack with unique inspection, and anti-jamming technology to greatly improve its reliability and functionality.

Features:

1. Easy operation, high automation (press the button once and all the work is done automatically).
2. Menu management, simple and convenient data input.
3. It can store 99 oil sampling test data. The test data can be reviewed and printed within 100 years after the power is off.
4. The clock keeps ticking after the power is turned off (the internal time of the system is for test reference, not for standard time).
5. The software can be upgraded through the RS232 terminal.
6. Strong anti-jamming and high-precision testing.
7. Small in size, lightweight, and convenient for outdoor operation.

Technical parameters:

1. Power supply: AC220V ±10%, 50Hz
2. Output voltage: 0~80KV or 0~100KV
3. Capacity: 1.6kVA, 2.0kVA
4. Speed of voltage increase: about 2kV/S
5. Voltage inspection accuracy: 3%
6. Breakdown sensitivity: <2kV
7. Waveform distortion: ≤3%
8. Breakdown response time: ≤ms
9. Working environment: temperature: 0C~50C, humidity: max relative humidity 95%
10. Storage environment: temperature: －20C ~ 65C, humidity: max relative humidity 95%
